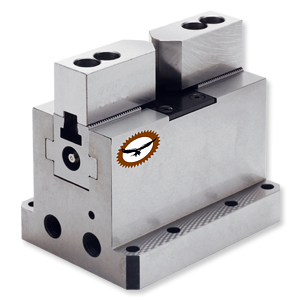

HCV 油壓對心兩爪
產品說明產品簡介
本產品共有3種規格 04, 06,
08 inch
長方形本體設計可並列安裝於治具
比一般圓形體更節省空間
堅持機台最有效率的產能
特性資料
|
型號 |
HCV-04 4 inch |
HCV-06 6 inch |
HCV-08 8 inch |
|
夾持力 |
500kg |
1000kg |
1500kg |
|
夾爪行程 (直徑) |
5.6mm |
5.8mm |
6mm |
|
最大夾持外徑 |
80mm |
120mm |
160mm |
|
最大夾持內徑 |
125mm |
170mm |
220mm |
|
油壓連接方式 |
配管型 油路板型 |
||
|
重量 |
4.6kg |
8.3kg |
15.3kg |
|

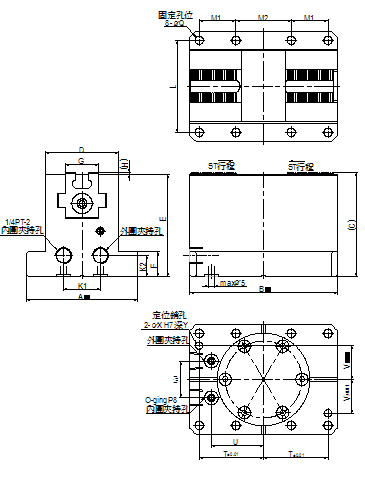

型號 |
HCV-04 4 inch |
HCV-06 6 inch |
HCV-08 8 inch |
|
A |
90 |
100 |
125 |
|
B |
120 |
165 |
21 |
|
C |
84.85 |
94.85 |
109.85 |
|
D |
60 |
70 |
85 |
|
E |
83 |
93 |
103 |
|
F |
20 |
25 |
30 |
|
G |
27 |
31 |
35 |
|
H |
1.85 |
1.85 |
1.85 |
|
K1 |
30 |
30 |
35 |
|
K2 |
17 |
19 |
19 |
|
L |
75 |
85 |
105 |
|
M1 |
30 |
40 |
60 |
|
M2 |
45 |
65 |
60 |
|
28 |
2.8 |
2.9 |
3 |
|
Q |
6.8 |
9 |
11 |
|
T |
52.5 |
72.5 |
90 |
|
U |
42.5 |
50 |
75 |
|
V |
27.5 |
27.5 |
35 |
|
W |
30 |
30 |
35 |
|
X |
6 |
8 |
10 |
|
Y |
9 |
12 |
15 |

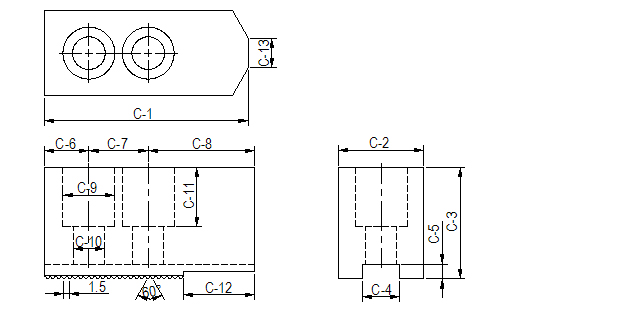

尺寸表(Size Chart)：
|
型號 |
C-1 |
C-2 |
C-3 |
C-4 |
C-5 |
C-6 |
C-7 |
C-8 |
C-9 |
C-10 |
C-11 |
C-12 |
c-13 |
|
04 |
62 |
25 |
30 |
10 |
4 |
12 |
14 |
36 |
13.5 |
8.5 |
21 |
- |
3 |
|
06 |
73 |
31 |
36 |
12 |
5 |
15 |
20 |
38 |
17 |
11 |
23 |
- |
14 |
|
08 |
95 |
35 |
38 |
14 |
5 |
24 |
25 |
46 |
19 |
13 |
23 |
20.5 |
16 |
特殊尺寸訂製表(Special sizes customized table)：
|
型號 |
C-1 |
C-2 |
C-3 |
C-4 |
C-5 |
C-6 |
C-7 |
C-8 |
C-9 |
C-10 |
C-11 |
C-12 |
C-13 |
|
04 |
|
|
|
10 |
4 |
|
14 |
|
13.5 |
8.5 |
|
|
|
|
06 |
|
|
|
12 |
5 |
|
20 |
|
17 |
11 |
|
|
|
|
08 |
|
|
|
14 |
5 |
|
25 |
|
19 |
13 |
|
|
|
